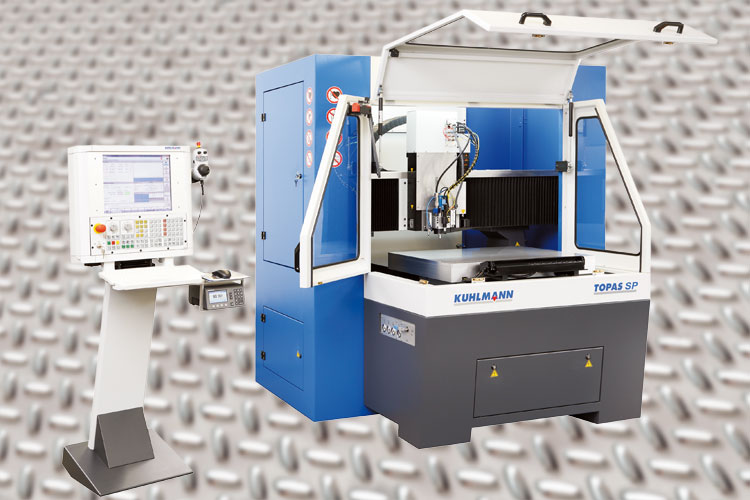

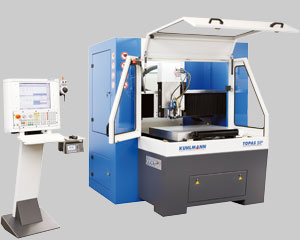

Topas SP - competence for flexible dies

The newly designed Topas SP replaces our well-known P25SP machine for processing of flexible dies.

With its large working area, this precision milling machine is especially designed for sharpening the cutting edge of punching sheet.

Highly precise guiding systems, accurate vacuum clamping technique and milling spindles up to 180 000 rpm guarantee maximum production quality.

Optional equipment like tool magazine, laser tool length measuring, calibration camera, measuring caliper for height control of cutting edge, linear measuring system and dust extraction allow to design the machine to your individual requirements.


Topas SP / Topas L / P25 CP brochure (pdf)

 Applications:  blanking and blanking out, window blanking, perforation
  • KUHLMANN Topas SP - kompetent für Stanzbleche

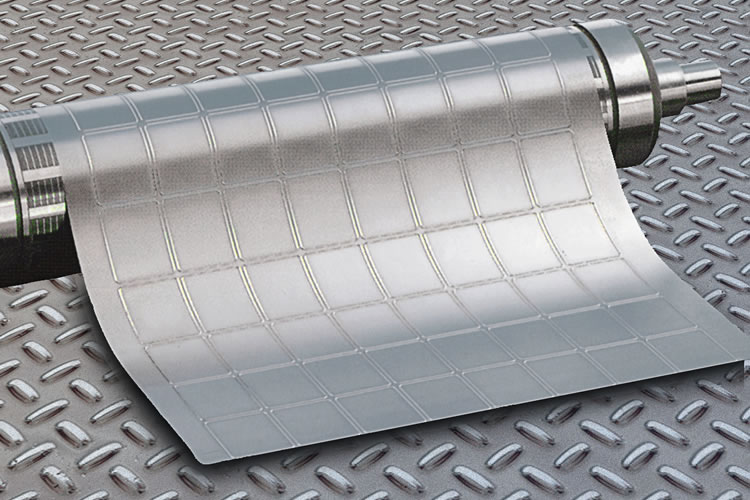

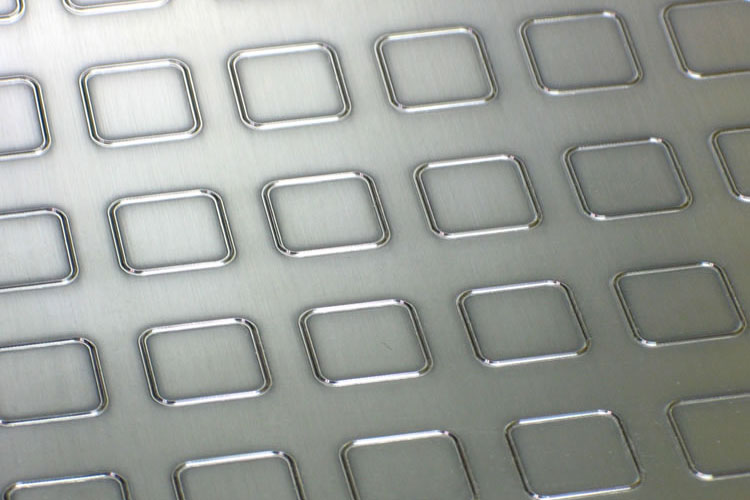

  • Stanzblech I
  • Stanzblech II

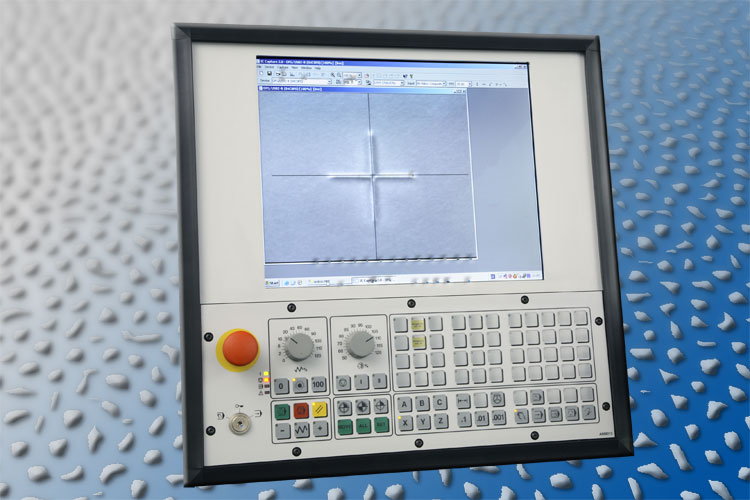

  • Bedientafel der andronic KM2060

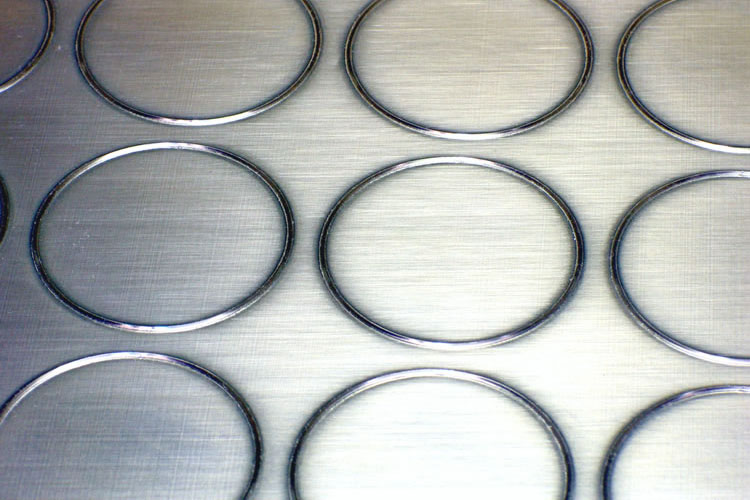

  • Stanzblech III

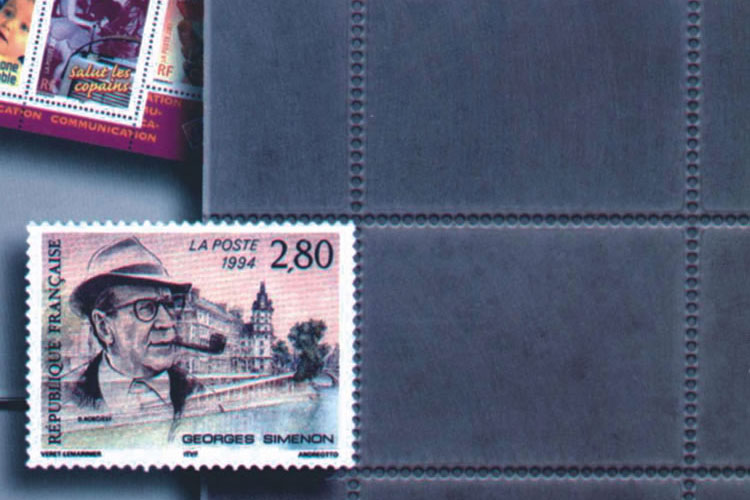

  • Fabriqué en France: Briefmarken der französischen Post
  • Stanzblech IV


Materials: etched steel plates
Technical data:
  Working area
X x Y x Z mm
     920 x 750 x 100
1100 x 800 x 100
  Axis drive
  Digital AC servo drive
  Speed rate
m/min
   Up to 15
  CNC control
  andronic KM3060
  Milling spindle
kW • 1/min
   0,3 – 1,2 / up to 180 000



Design characteristics
  Extremely rigid machine assembly in portal construction with very short Z-axis
  Finest milling quality because of low vibrations through cast mineral composite construction
  Precision without compromise through use of premium guiding elements
  Highly precise breadboard vacuum table
  Highly dynamic digital drives guarantee for optimum contour accuracy
  Modern 32bit multi-processor path control

Options




Direct path measuring system

Heidenhain diadur glas scales
Encapsulated system
High position accuracy
High repeat accuracy


Camera for adjusting according to reference mark

Display in machine monitor
Monochrome camera with lease
Industrial design

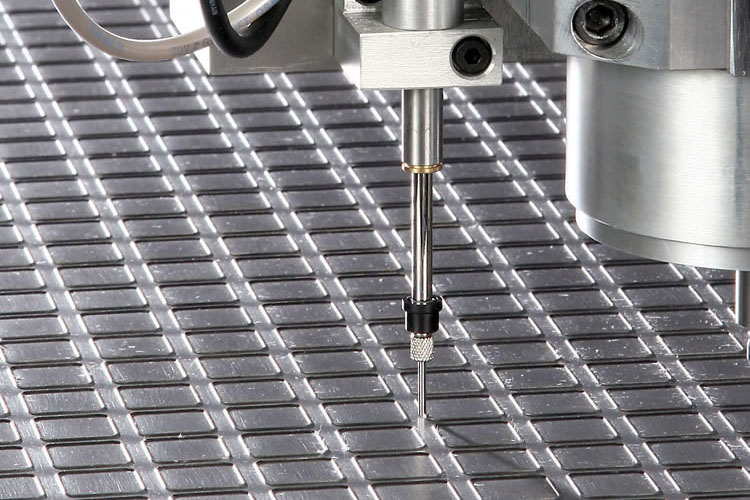

Z-axis with milling spindle, camera, dust extraction and measuring calliper

Tool magazine for 20 tools with laser measuring system

Without restriction of working area
Direct tool clamping system
Dustproof, position control
Various options available






Milling spindle packages

Various manufacturers
Anti-friction bearing up to 80,000 RPM
Air bearing with emergency-run package up to 180,000 RPM


Measuring caliper with measured value display

For evaluation of cutting edge height
Stroke 25mm






Tool length measuring system

Hard metal measuring area
Measuring power 2.5N
Repeat accuracy 0,001 mm


Laser tool measuring system

For touch-less measuring of tool length and diameter on rotating tool
Sender, receiver, software






We will be glad to inform you about further options
